A heavy-duty, off-grid lofted A-frame cabin constructed over a high-durability modular foundation consisting of six 4'x8' pressure-treated skid assemblies linked into a unified 12' x 16' platform (144" W x 192" D x 192" H overall). Engineered specifically for high moisture and high wind loads near lakefront environments, this structural framework incorporates 60-degree steep A-frame 2x8 rafters, a structural double 2x10 ridge beam, hurricane ties, collar tie loft joists, and plywood ridge gussets to handle lateral shear and uplift while preventing ridge deflection.
advanced wood other

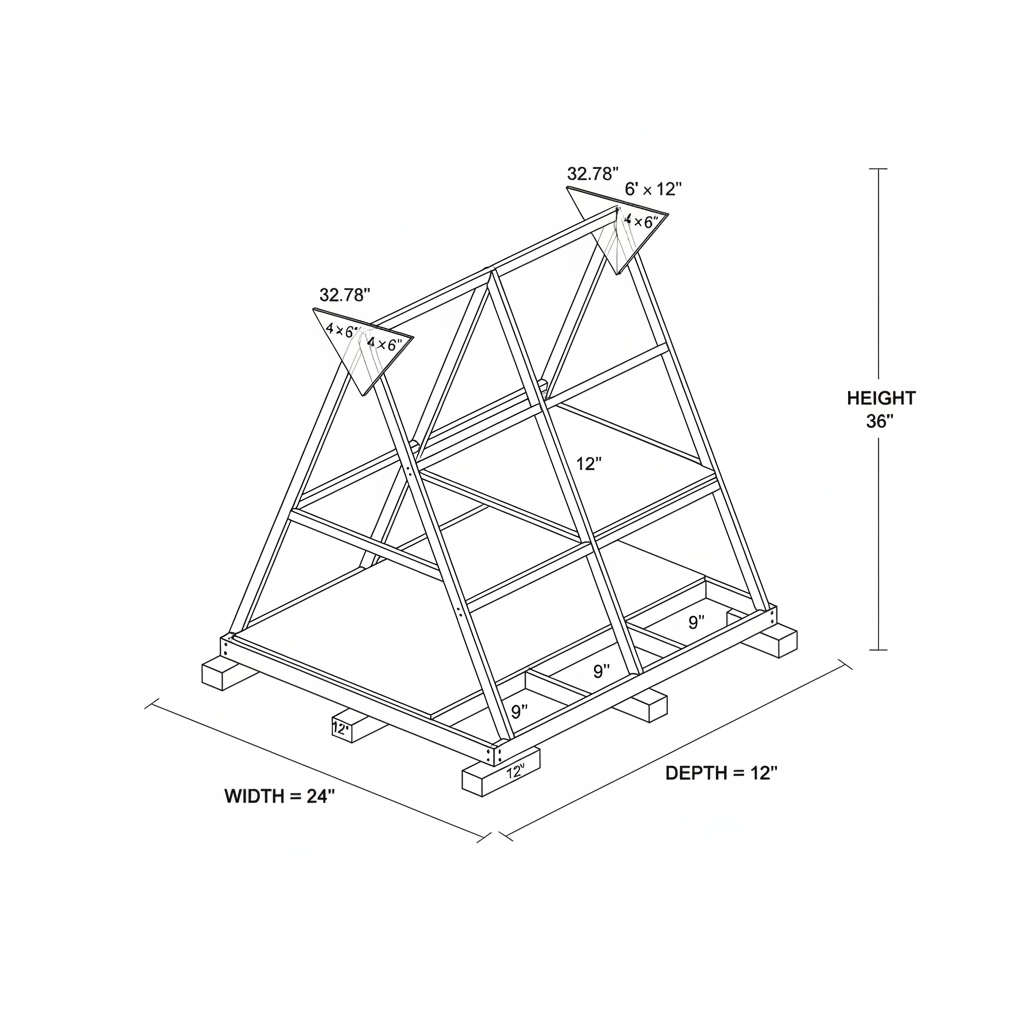

Dimensions: {"unit":"in","depth":12,"width":24,"height":36,"autoEstimate":true}
Materials
- 4x4 Ground Contact Pressure-Treated Timber (SYP)
- 2x6 Pressure-Treated Deck Framing Lumber (SYP)
- 2x8 Framing Lumber (#2 & Better Southern Yellow Pine)
- 2x10 Framing Lumber (#2 & Better Southern Yellow Pine)
- 2x6 Kiln-Dried SYP (Loft Joists & Collar Ties)
- 2x4 Kiln-Dried SYP (Gable End Wall Studs & Wind Bracing)
- 3/4" Exterior Tongue & Groove CDX Plywood Subfloor
- 5/8" CDX Structural Plywood Sheathing (Roof Decking)
- 3/4" Exterior Grade ACX Plywood (Loft Floor & Ridge Gussets)
Tools Required
- Circular Saw (7-1/4") with 24T Framing Blade
- Sliding Compound Miter Saw (10" or 12")
- Heavy-Duty Framing Nailer (30-degree)
- Impact Driver & High-Torque Drill
- Laser Level or 48" Box Level + String Line
- Speed Square & Framing Square with Stair Gauges
- Structural Heavy-Duty Clamps (36" Steel Bar / Pipe Clamps)
