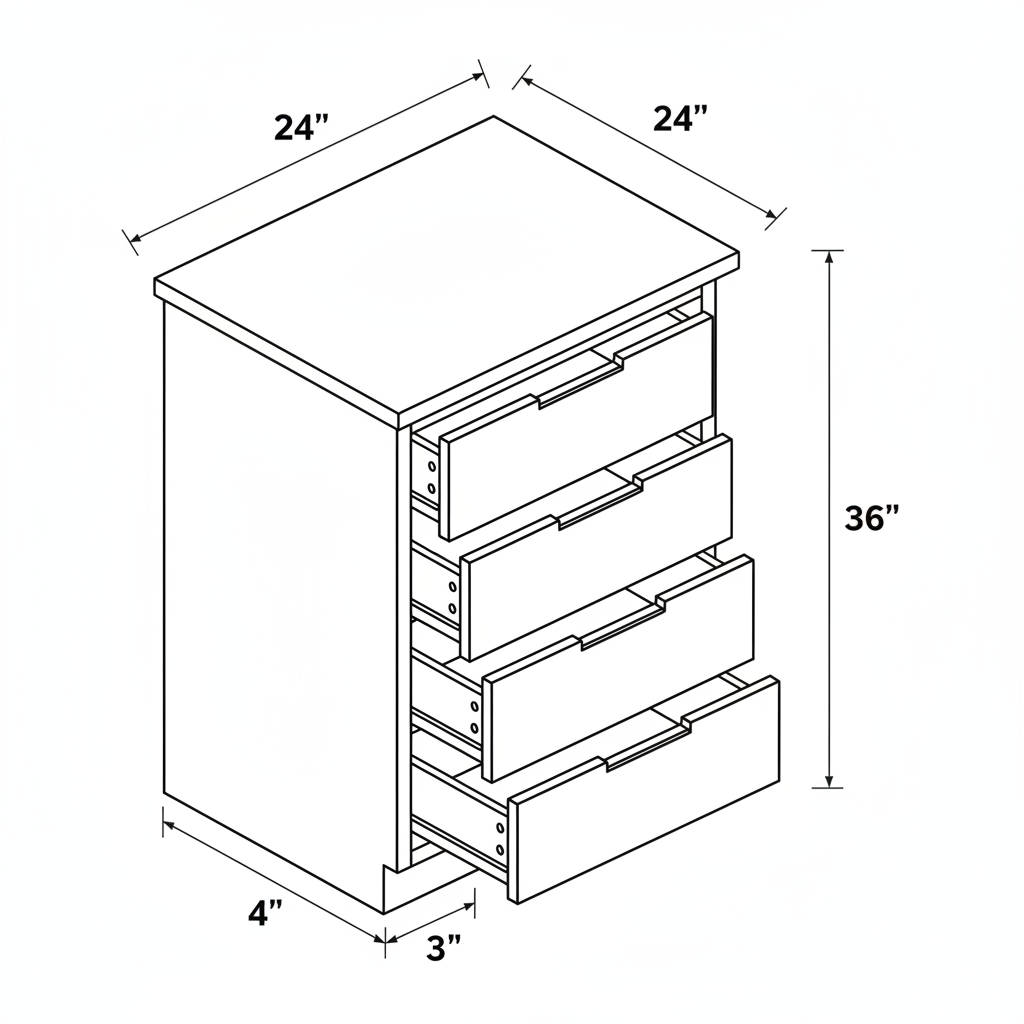

A high-end, modular drawer base cabinet system designed to span a continuous 19-foot wall using alternating 24-inch and 30-inch standard configurations. This master build plan outlines the construction of the foundational 24" W x 24" D x 36" H 4-drawer base cabinet. The structural engineering of this module uses solid 3/4" pre-finished maple plywood joinery with captured 1/2" back panels and heavy-duty drawer box designs to prevent sag. Scaling this unit to a 30" width requires only increasing transverse horizontal elements by 6".
intermediate wood other
Dimensions: {"unit":"in","depth":24,"width":24,"height":36,"autoEstimate":false}
Materials
- 3/4" Pre-finished Maple Plywood, S2S Grade A
- 1/2" Baltic Birch Plywood (9-ply)
- 1/4" Pre-finished Maple Plywood
- 3/4" Solid Hard Maple Hardwood
Tools Required
- Table Saw
- Dado Blade Set
- Pocket Hole Jig
- Router Table
- Pneumatic Brad Nailer
